Features
Application

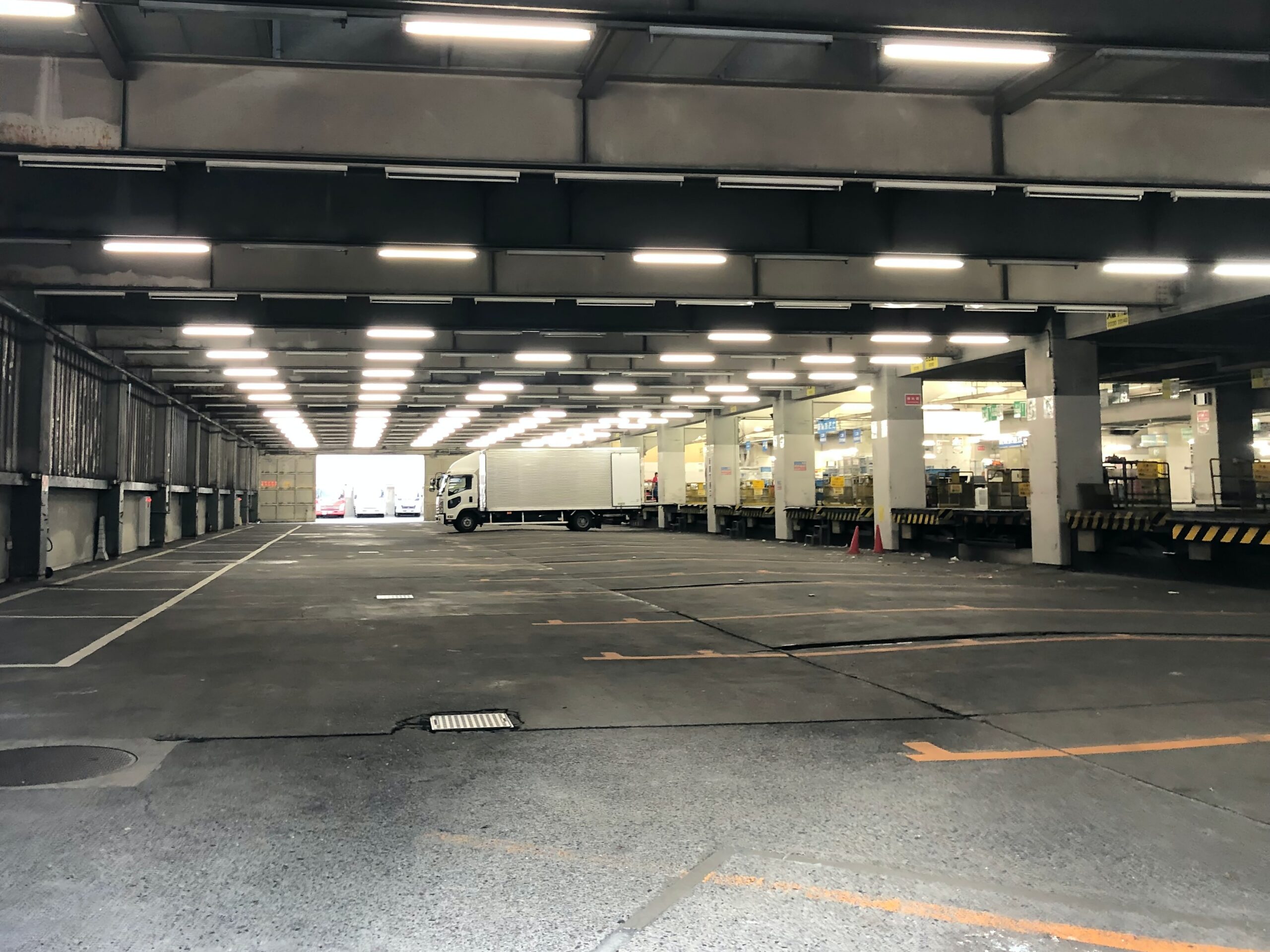

Car washing yard, Parking lot, Meat processing, Farm,Food processing yard, Low temperature storage room, Department store.

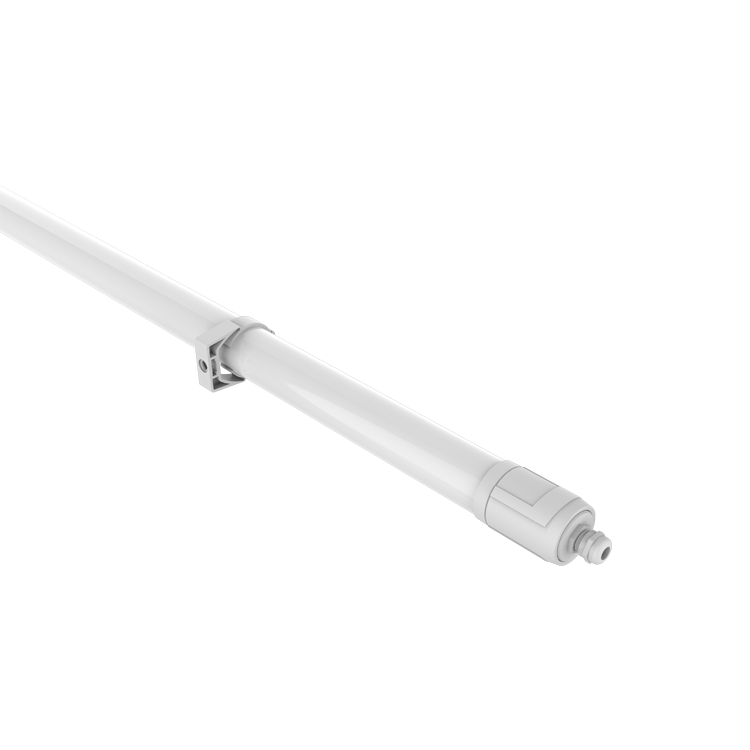

The Socrates series LED tri-proof light offers a versatile lighting solution suitable for both indoor and outdoor areas, thanks to its IP65 rating, ensuring water tightness, vapor tightness, and damp proofing. Its tubular design not only enhances its aesthetics but also reduces the tendency to soil, making it easy to clean and maintain.
Featuring a built-in driver/ballast design, this light ensures high efficiency output, with a maximum luminous efficacy of up to 160 lm/W. The optional wire through connection allows for quick on-field connections using quick-release and fasten connectors, enabling swift installation and maintenance.
The diffuse polycarbonate cover ensures a particularly uniform light distribution, providing consistent illumination across the illuminated area. With a long service life, high luminous flux, good color reproduction, and wide beam, this light delivers reliable performance for a variety of applications.
Furthermore, the Socrates series offers low maintenance requirements, and a DALI dimming version is available for enhanced control over lighting levels. Additionally, power and color adjustments can be made via a DIP switch, allowing for customization based on specific requirements.
With the entire series available, users can choose from a range of options to suit their needs, whether for industrial, commercial, or outdoor lighting applications.
Technical parameter
| Model No. | Power [W] | Luminous Efficiency | Diameter[mm] | Length[mm] |
| MS-LL06012-XXBF | 12 | 150-160lm/W | φ52.5 | 600 |
| MS-LL15045-XXBF | 45 | 150-160lm/W | φ52.5 | 1500 |

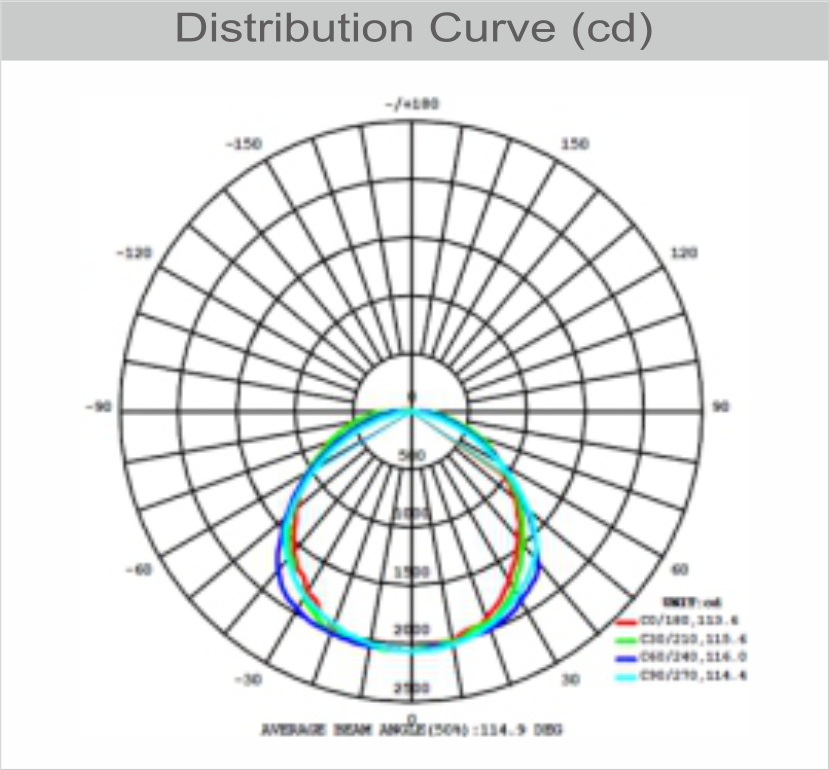

Light Distribution

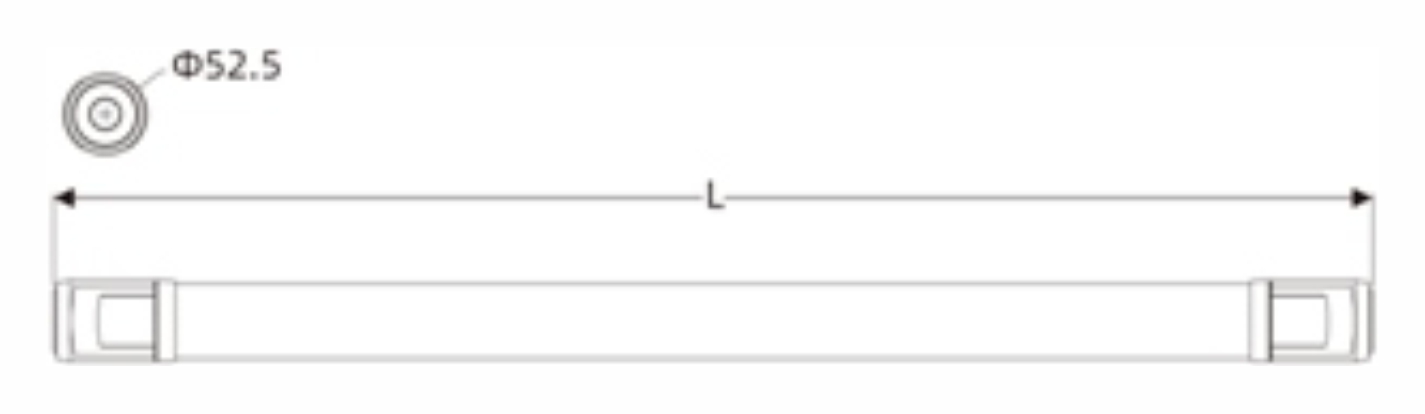

Product Dimension
Most of the LED lighting products can offer 5 years warranty, some may offer 3years or more than 5 years based on exact requirements.
This depends on products type, can talk to our sales team, specify which product you interested, and confirm the MOQ.
7-15 days for standard product samples, some may faster than 7 days if there with stock for finished products or materials.
Most standard products designed with≥50000H.
For new customer, T/T transfer preferred, cooperated customer (30% deposit &70% balance paid before shipment), or and L/C for large QTY order. Can confirm with our sales.
Yes, we can accept ODM orders, also OEM are welcomed.
For outdoor lighting products, most designed with IP rating 65，also IP66 and IP67 for some products with higher requirements, even for IP68 available based on requirements for few items.
We can accept this kind order delivery, but with certain QTY requirements.
Please contact our sales for details.
Street light, LED tunnel lights, LED flood light, LED high bay light, Tri-proof light, etc.
Besides these products, we also accept customized products. We have full skilled R&D team, with more than 100 engineers here.
Normally for industrial lighting products, we use Philips lumiled, OSRAM, CREE, for some products, also used some local good quality LED. And we have our own packed LED lightsource/ components as well, and showed in very good quality and performance.
We have different brand driver for options, like Philips ,Sosen, Meanwell, Inventronics and so on. Customer can appoint the LED driver brands if there with requirement, and we will evaluate the technical aspects to ensure can be used for the specified products.
This depends on the exact products and QTY. Normal orders 3 weeks to 5 weeks if without material stock, if there with raw material stock, can be 2 weeks to 3 weeks.
Most products we got CE / CB approved, and some ENEC approved, not for all.
This negotiable based on projects or requirements.
We can discuss based on exact situation. Some may can offer free samples. go to talk with our sales, let them know your requirements.
