Solutions For LED Street Lights
To solve these existing problems, it is recommended that street lamp manufacturers start with basic materials and solve the heat source problem of high-power LEDs from the inside out. For example, in the bonding of light-emitting components and aluminum substrates, thermally conductive adhesives play a key role. Some manufacturers think that the thermal conductivity of thermally conductive films or thermally conductive pads is better, and the film thickness should be as thick as possible, but they did not think about thermal resistance. No matter how good the thermal conductivity is, it is useless to meet the thermal resistance of the film thickness. What’s more, the thermally conductive adhesive film or soft thermally conductive gasket cannot really adhere to the substrate, and there are actually many pores on the bonding surface. These pores look like hollow air pockets when viewed under an electron microscope, which is another form of thermal resistance. With so much thermal resistance that interferes with heat conduction, the efficiency of heat dissipation and heat conduction is virtually reduced.
If the thermal resistance is low, it is necessary to use the thermal conductive adhesive, and the soft ceramic thermal conductive adhesive for screen printing construction is recommended. The soft ceramic thermal conductive adhesive for screen printing construction is different from the traditional laminating thermal conductive adhesive film. The soft ceramic thermal conductive adhesive is soft and semi-liquid. When the screen printer squeegee is applied to the aluminum substrate, the thermal conductive particles will penetrate into the pores on the substrate surface. I fill it up to the full. In this way, a completely flat surface with no pores will be formed, and it will be completely adhered to the LED epitaxial substrate. In this way, the thermal resistance is reduced to a minimum, and the heat can be quickly conducted out, which naturally reduces the ambient temperature of the LED die, prolongs the life of the epitaxy and greatly delays the occurrence of light decay. In addition, due to the ductility of the soft ceramic thermal paint for screen printing construction, it will change with the thermal expansion and contraction of the aluminum substrate during high-temperature baking or reflow. The stress is very small, and it will not cause the aluminum substrate to warp or warp. Will burst.
It is recommended to use soft ceramic heat-dissipating paint for LED lamps for the external protection of LED lamps. This spray-type soft ceramic heat dissipation paint can be directly sprayed on the outside of the LED lamps, construction and operation are simple, can be adapted to various shapes of heat dissipation structures, and can also be adjusted to different colors to meet the needs of landscape design. The soft ceramic particles in the spray-type heat dissipation paint are nano-processed. The fine particles are not only easy to operate with the spray gun, but also make the heat-conducting particles on the same coated area more and more dense, and the area where the temperature evaporates and diffuses becomes larger. Let the heat of the LED lamps be quickly conducted out. The soft ceramic heat-dissipating paint is a thermosetting material that complies with RoHS environmental safety regulations. The construction procedure is simple and does not require any special equipment. After baking, it can be thermoset and can withstand the high temperature of the LED for a long time without qualitative deterioration. LED street lights, LED landscape lights, or LED advertising billboards used outdoors will also face acid and alkali damage such as wind and rain, acid rain, bird droppings, air dust, black smoke emission hELlip; and so on. Therefore, this kind of spray-type soft ceramic heat dissipation paint must have the characteristics of acid and alkali resistance, and the range of pH resistance is between PH3~11, which can effectively protect the appearance of LED outdoor lamps from being corroded.

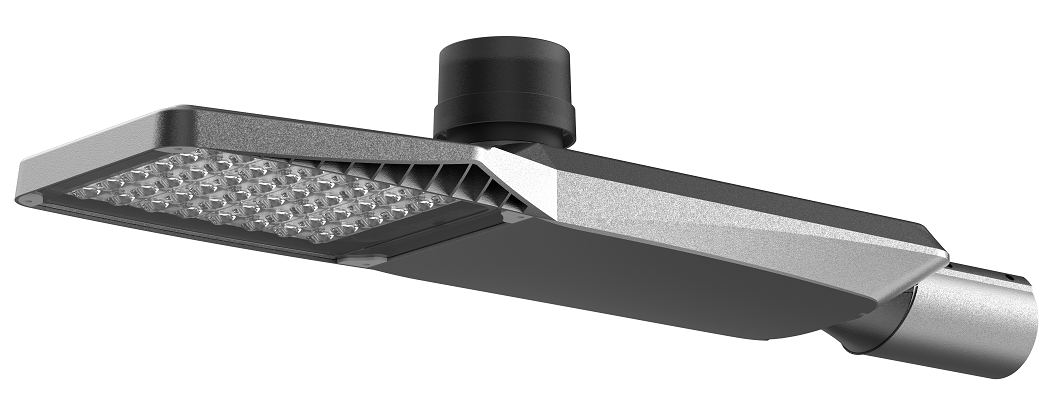

VINCI series represent the trend of municipal lighting. Compatible with both NEMA and ZHAGA code, led retrofit street light play an important role for intelligent city. Class II safety protection and ENEC regulation is well considered from the creation. Compatible well to the latest versions of Dali, Zig bee and Bluetooth, led retrofit street light provide multiple smart choices. Available in 17 models, led retrofit street light provides a welldimensioned, efficient lighting solution ranging from various low-height applications such as parks, bicycle paths or residential streets to main roads, boulevards and motorways. The led retrofit street light range sets a new benchmark in outdoor LED lighting with performing and flexible solutions that lead to the shortest payback time while being connected-ready for your future Smart City requirements.
