Luminaire Classification System (LCS) and Environmental Impact

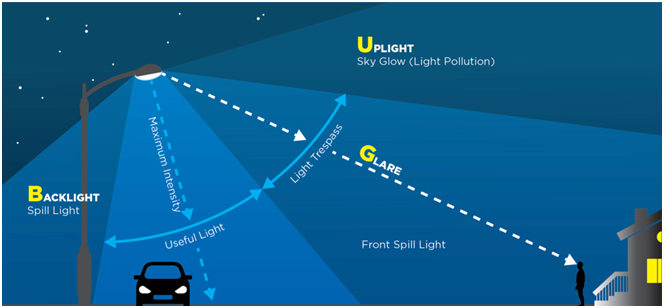

Outdoor lighting systems are increasingly scrutinized for their environmental impact, particularly in terms of light pollution, light trespass, and glare. The IES BUG (Backlight-Uplight-Glare) rating system has replaced the older “Cutoff” LCS to address these concerns effectively.

Key Elements of the IES BUG Rating System:

• Backlight: Measures light emitted opposite to the main aiming angle. Classified into high (60 – 80 degrees), medium (30 – 60 degrees), and low (0 – 30 degrees).
• Uplight: Assesses light emitted at or above the horizontal plane. Categorized as high (100 – 180 degrees) and low (90 – 100 degrees).
• Glare: Evaluates forward and backward light intensity, categorized similarly to backlight.

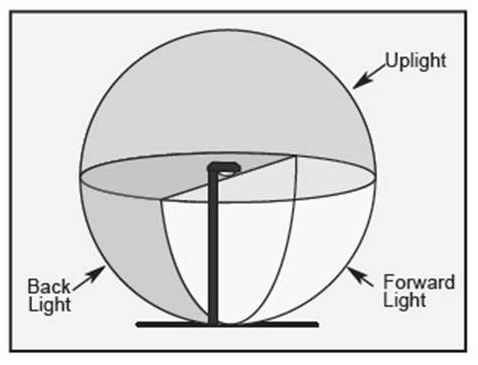

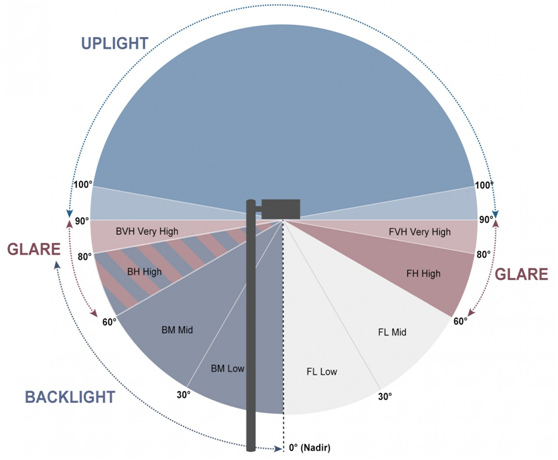

Detailed Zonal Classification:

• Forward Light (0° – 90° vertical, 90° – 270° horizontal):

  • Includes segments: low (0° – 30° vertical), mid (30° – 60° vertical), high (60° – 80° vertical), and very high (80° – 90° vertical).

• Backlight (0° – 90° vertical, 90° – 270° horizontal):

  • Segmented into: low (0° – 30° vertical), mid (30° – 60° vertical), high (60° – 80° vertical), and very high (80° – 90° vertical).

• Uplight (90° – 180° vertical, 0° – 360° horizontal):

  • Divided into: low (90° – 100° vertical), and high (100° – 180° vertical).

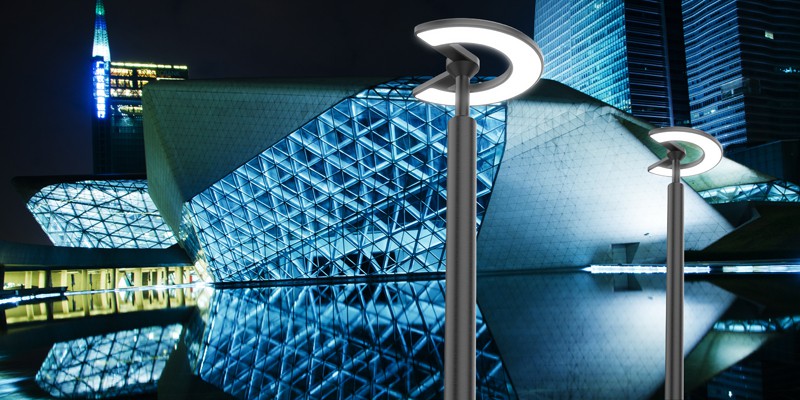

MASON LED Lighting Solutions: At MASON LEDs, we specialize in high-quality LED lighting products designed to meet stringent environmental standards. Our offerings include:

• Superior Lighting Output: Achieved through cutting-edge technology and rigorous quality control.
• Expert Support: Our team of professional lighting designers and optical engineers provides comprehensive support for lighting design and consultation.

Conclusion: MASONLED is committed to offering innovative LED lighting solutions that not only meet but exceed industry standards for performance and environmental responsibility. Contact us today to learn more about how our products can enhance your lighting projects.
